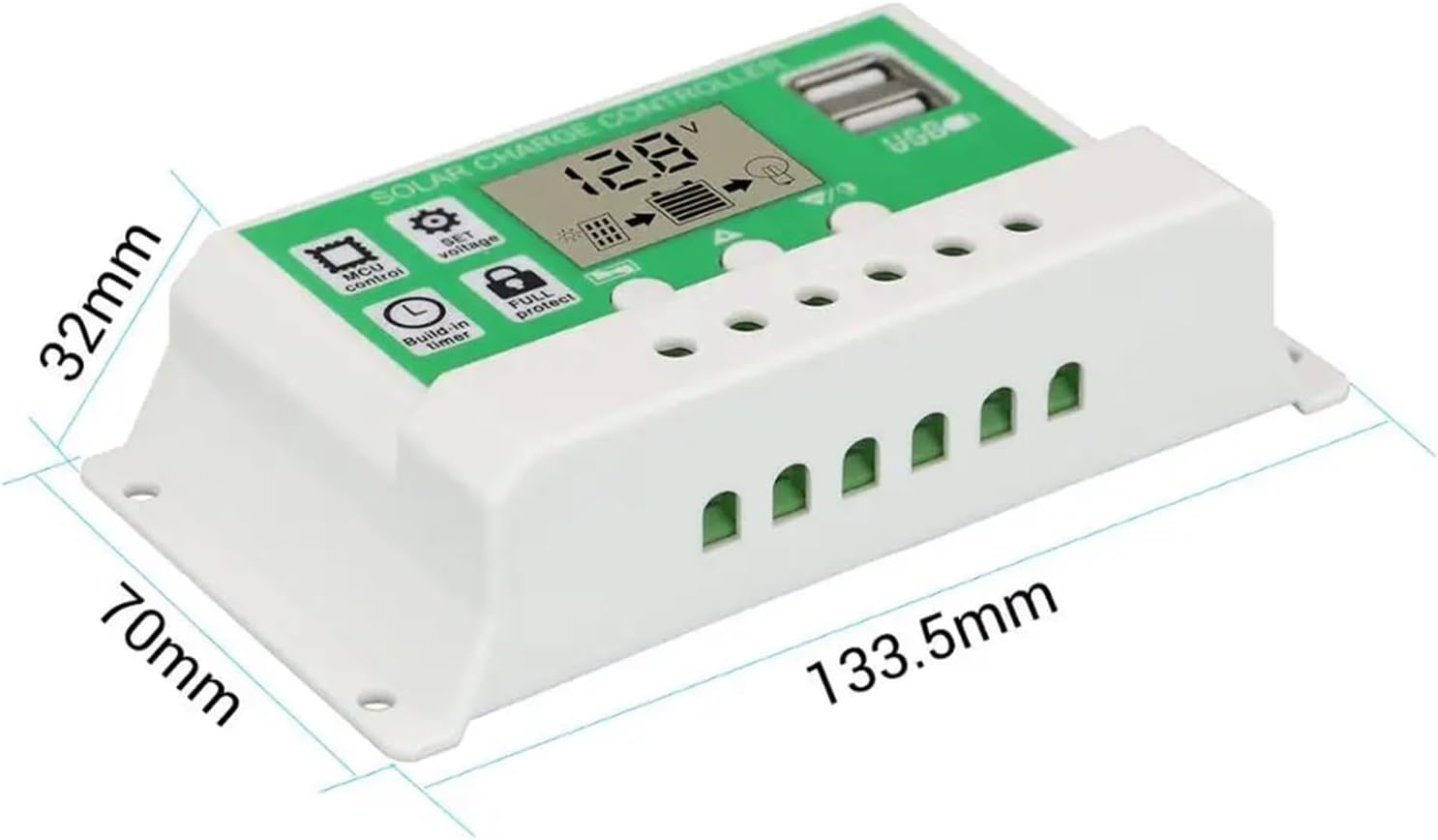

30A 20A 10A PWM Solar Charge Controller Lithium Battery Lead Acid Battery 12V 24V Auto with Dual USB Solar Regulator(10A)

Solar Battery Chargers & Charging Kits30A 20A 10A PWM Solar Charge Controller Lithium Battery Lead Acid Battery 12V 24V Auto With Dual USB Solar Regulator This30A 20A 10A PWM Solar Charge Controlleris suitable for 12V 24V lead acid battery,Lithium-ion battery(3 strings of 11.1V lithium batteries);Lithium iron phosphate batteries(4 string of 12.8V).1. Build-in industrial micro controller.2. Big LCD display,all adjustable parameter.3. Fully 3-stage PWM charge management.4. Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.5.Dual USB 5V output ,max current can be 2.5A6. Dual mosfet Reverse current protection ,low heat production.Model NameRBL-10A-LiRBL-20A-LiRBL-30A-LiCharge Current10A20A30ADischarge Current10A10A10AMax Solar Input12V battery, the highest is 23V24V battery , The highest is 46VBattery typeB1 =Lead acid battery 12V/24VautoB2=Lithium-ion battery (lithium battery) 3 strings 3.7V=11.1VB3=Lithium iron phosphate battery 4 strings 3.2V= 12.8VEqualization14.4V(B1) 12.6V(B2) 14.6V(B3)Discharge stop10.7V(B01) 9V(B2) 10V(B3)Discharge reconnect12.6V(B1) 10.5(B2) 12V(B3)Voltage of open lightSolar panel 8V(Light lights delay)Voltage of close lightSolar panel 8V(Light off delay)USB output2 way USB output. 5V/2.5A(MAX)Self-consume<;10mAOperating temperature-35-+60Size/weight133.5*70*35mm / 165g
